Low-level magazine eliminates excessive lifting and extends time between refills

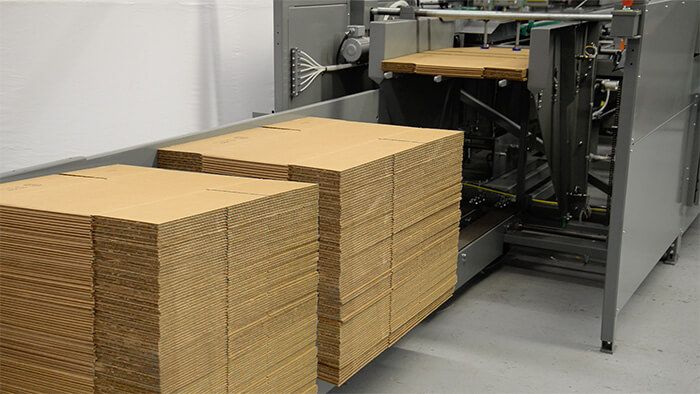

No more lifting heavy cases! This ergonomic, floor level magazine eliminates a potential source of liability found in mid and high level magazines. KDs are easily transferred from pallet to the magazine without stress…your attendant simply positions them against the squaring rail, and the stacks feed automatically. KDs can be added at any time.

The standard high capacity magazine holds multiple KD stacks, giving your attendant more time between refills.

Magazine extensions are available for added KD capacity.

Top feed magazine accommodates warped and band-marked corrugated blanks

KDs are lifted from the top of the stack by dual, spring-loaded grippers that are forgiving to inherent case variations and smoothly handle large, heavy corrugated blanks. The grippers independently adjust to lift KDs from uneven stacks caused by warped or band-marked KDs and provide smooth transfer to the opening station.

The horizontal, top feed magazine eliminates issues of back pressure that can cause misfeeding in vertically stacked magazines.

Square cases start with total case control

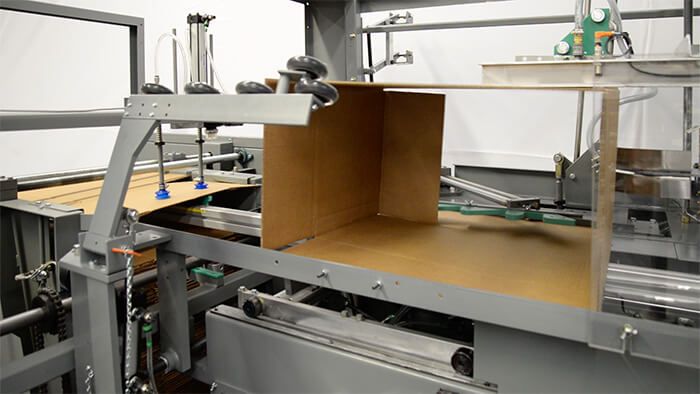

At the opening station, pneumatic grippers secure cases from below. Meanwhile, the mechanical, reciprocating arm lowers and “over-opens” cases on the major flap to ensure successful minor flap closing of the bottom flaps. This system runs corrugated with out-of-spec manufacturer’s joints. This dual-gripper action system also positively opens doublewall cases.

A-B-C’s vacuum opening technology smoothly opens even warped and bent cases, unlike pin-style openers which require straight corrugated flutes for proper operation. An automatic blowback system keeps air lines clean.

Multiple features ensure consistently square cases

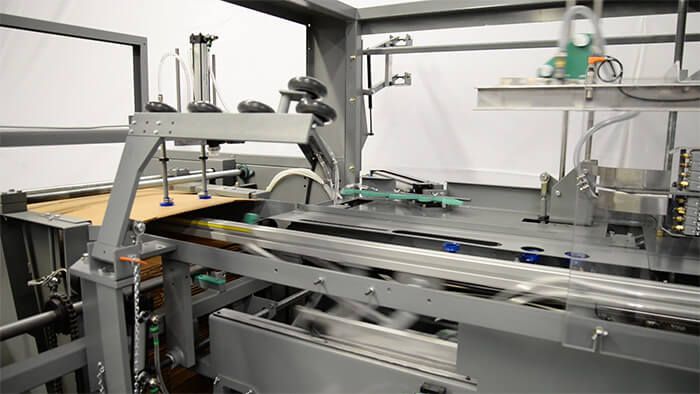

The walking beam case transfer is powered by the mechanical, continuous motion machine drive. It provides smooth case transport and keeps the case square as it moves from opening to sealing.

Servo-powered sealing ram

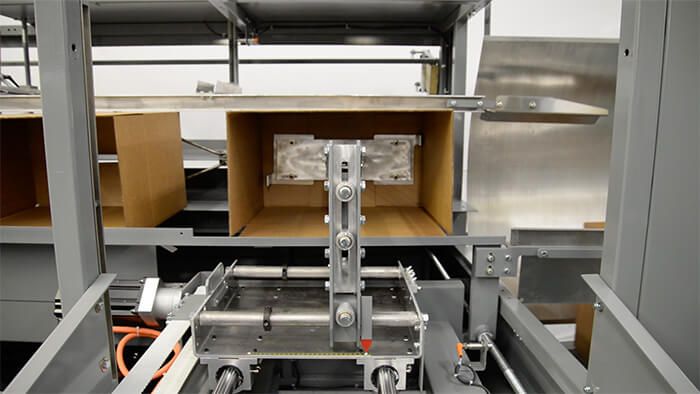

The adhesive sealing compression mandrel is built with opposing stationary lugs that square cases as they are sealed. The soft-glide compression ram is servo-powered to precisely deliver full compression for secure seals.

Tape-sealed cases are squared by upper and lower transfer belts throughout tape application. Both 2” and 3” width tape applicator heads are available.

Supplying a continuous flow of cases to your packaging line

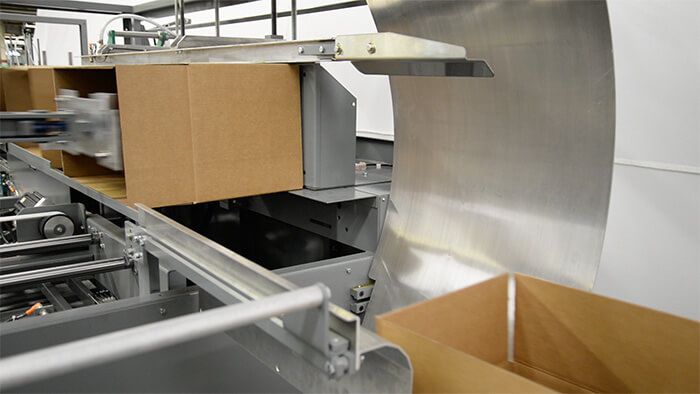

The standard M440 model includes a heavy-duty, adjustable discharge chute. This device uprights cases as they exit the machine to the line conveyor, delivering a constant supply of square, well-sealed cases, oriented for efficient transfer to the packing station.

Minimize downtime with rapid case changeover

Changeover for the complete range of sizes can easily be done in minutes. Most adjustment settings utilize rapid adjust hand cranks and slides with locking handles. Automatic adjustment is available with servo-powered adjustment devices.

Intelligent machine control simplifies setup and diagnostics

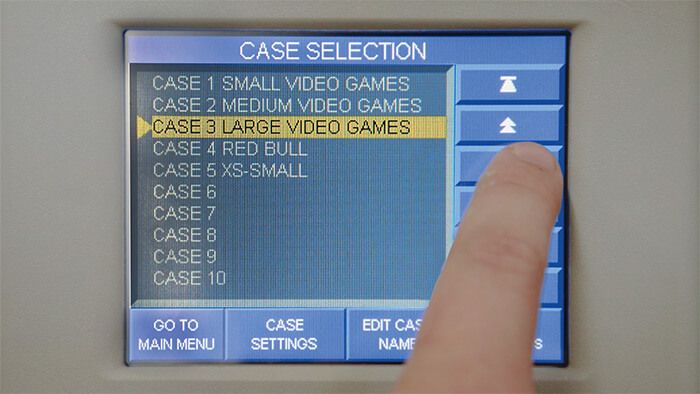

Operation is simple and repeatable for quick operator proficiency. At the touchscreen, you control all functions, diagnostics, and changeover settings following clear, step-by-step sequences. Real-time operating data is available at a glance.

Non-contact sensors monitor machine functions and ensure precise timing of each operating sequence. Troubleshooting at the control console is straightforward, with simplified drill-down to sensor level for immediate fault detection and quick resolution.
