Partition Opener and Inserter
Model 70
Corrugated and Chipboard Partition Inserting

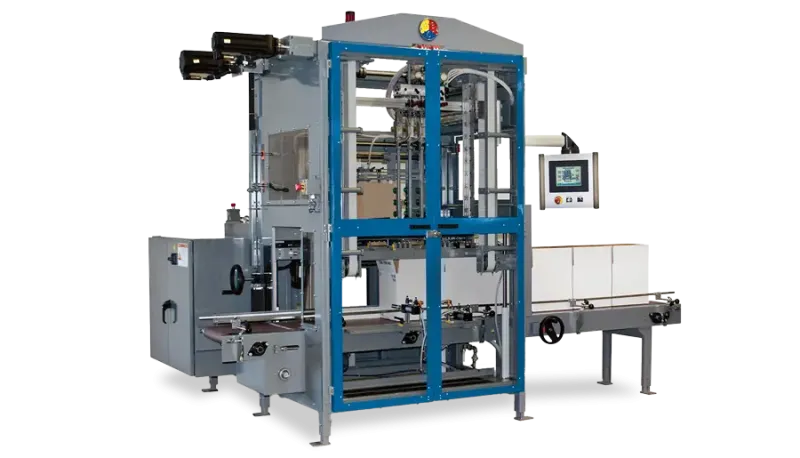

Gain top reliability and flexibility in partition inserting and smooth performance at your case packer. Servo opening and inserting ensures top precision and changeover is easy with no tools required.
Quality construction for max performance and reliability
Designed and built to A-B-C’s exacting standards, these partition openers and inserters are constructed for long term operation with less wear or care. They are workhorse machines that deliver top reliability on busy food and beverage production lines.
Clear guard doors enclose the machine, keeping your line operators safe while allowing full visibility of operation. Safety interlocks stop machine operation when the doors are opened to allow full access to the machine.
Their sleek, inline designs and compact footprints ensure easy integration of these partition inserters on the packaging line.
Total control from magazine to case ensures reliable partition inserting

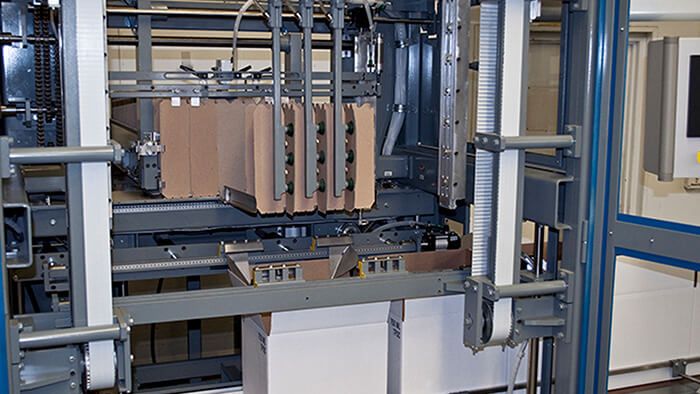

Partitions are indexed from the magazine and opened in a singular, continuous motion, providing maximum efficiency unmatched by two-step indexing and opening. They are maintained under full control from magazine to case. Dual servos provide precisely synchronized opening and inserting and dual servo lateral stabilizers lock the partition open before insertion.
Case feed and alignment ensure proper partition

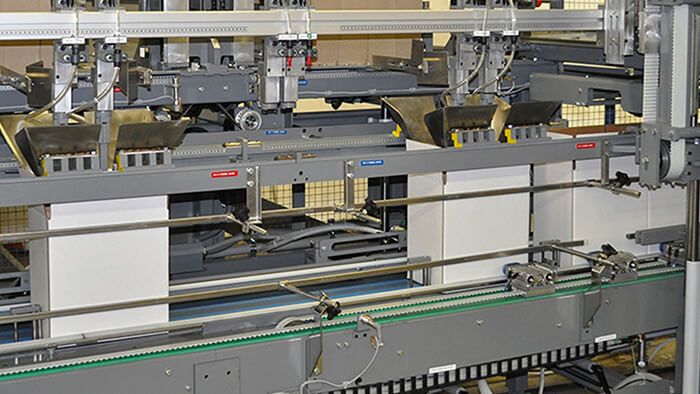

High traction belting positively transfers cases from infeed through discharge. They are indexed into position against conveyor stops, then funnels lower into the case to guide the partitions into precision alignment. These important steps ensure that partitions are inserted correctly for non-stop operation at the case packer.
Ergonomic design for efficient loading during operation

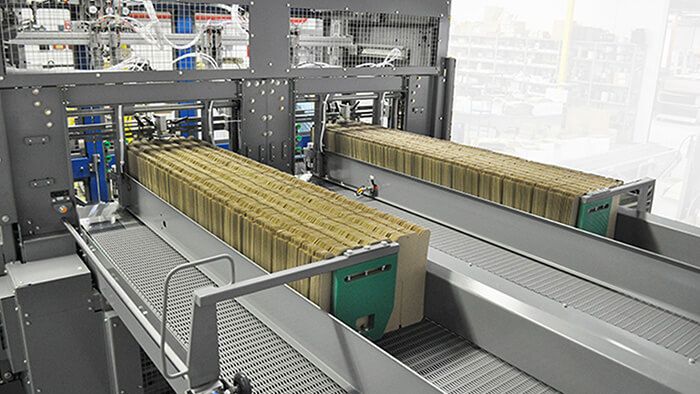

The large partition magazine is designed with features to hold partitions in the proper compression to ensure reliable feed and offers easy loading at any time during operation.
The standard magazine holds 250 partitions, and extended magazines are available to allow more time between refills.
Changeover time is dramatically reduced up to 70%

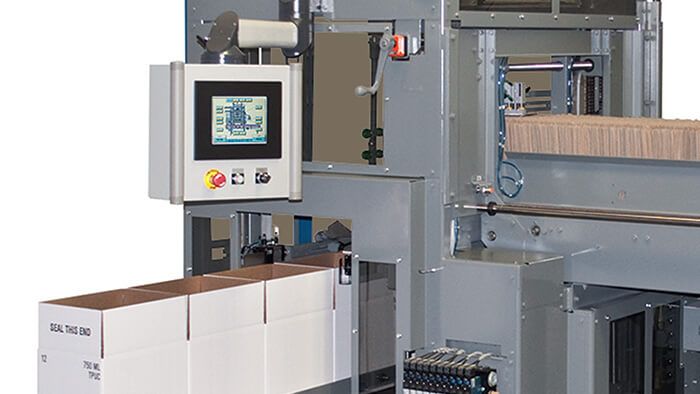

No tools or change parts are required for changeover for the complete range of partition sizes. All production parameters are stored for immediate recall at the HMI control panel. The operator simply selects the new size, then follows the sequence shown on the touchscreen display.
The modular gripper devices offer quick change, easy-lock adjustments. Quick-turn locking handles and hand turnwheels with position indicators simplify dimensional adjustments at the conveyor for quick return to production.

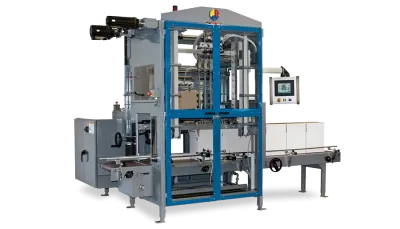

Single Head Partition Inserter
Speed: Up to 35 cases/minute
Case range: RSC, HSC or Tablock cases
Partition range: Full height or shoulder height partitions

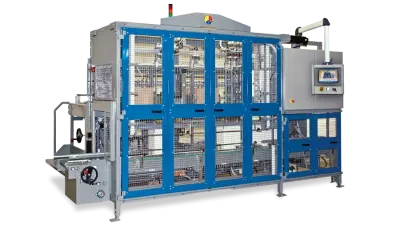

Dual Head Partition Inserter
Speed: Up to 50 cases/minute
Case range: RSC, HSC or Tablock cases
Partition range: Full height or shoulder height partitions
