Palletizer
72 Series

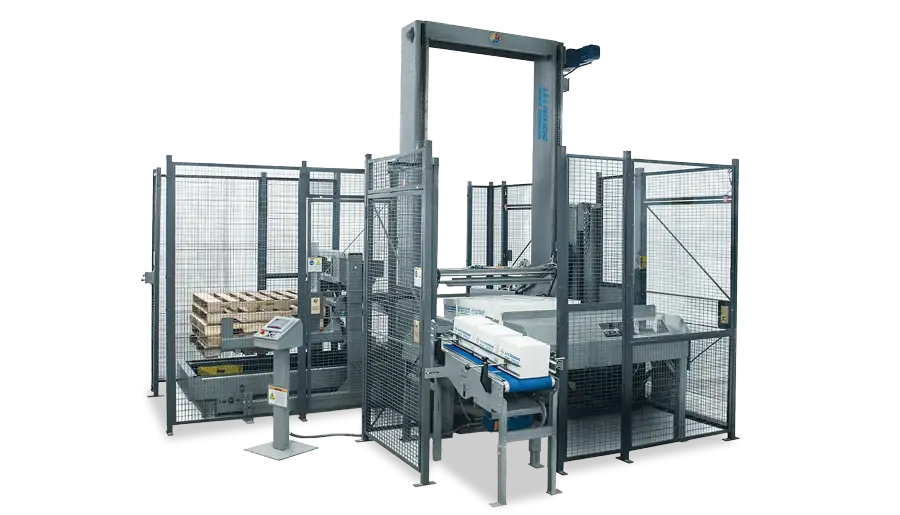

Automatic Low Level Palletizers
These robust and reliable palletizers offer workhorse production, built-in flexibility, economical floor level operation, and simple and intuitive control. With smart electronics for seamless plant integration and upgrades, these versatile palletizers are designed to suit your production needs for years to come.
Quality built to provide top production on your packaging line
Quality construction, with proven production features and attention to detail set A-B-C palletizers apart and ensure top performance.
- Heavy gauge steel frames are welded and bolted for maximum strength and durability
- Quiet and efficient electric motor drives provide efficient and reliable performance
- Elevator tables are constructed of reinforced stainless steel to minimize friction during layer accumulation. Tapered edges to ensure stable load transfer.
- Counterweighted design with variable frequency motor drive ensures smooth vertical transport with no hard starts/stops or related component wear
- Automatic layer centering by PLC-controlled layer retainer bar
Low level palletizing keeps production at floor level for low cost of operation
The clean, open construction and floor level access points of this palletizer keep your line personnel at floor level, simplify routine maintenance, and eliminate the need for costly overhead platforms. On-floor operation allows your plant personnel to visibly monitor palletizer operation while performing other tasks.

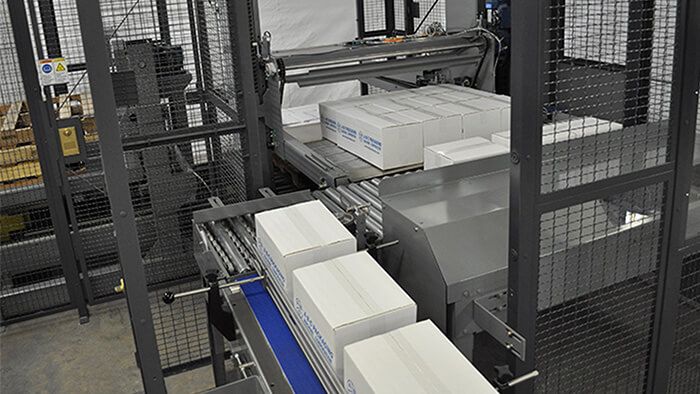

While this palletizer operates at floor level, it accepts cases from any level. So, you can enjoy the benefits of low level palletizing with case feed at low, medium or high level.
Intelligent machine control simplifies operation, changeover and maintenance

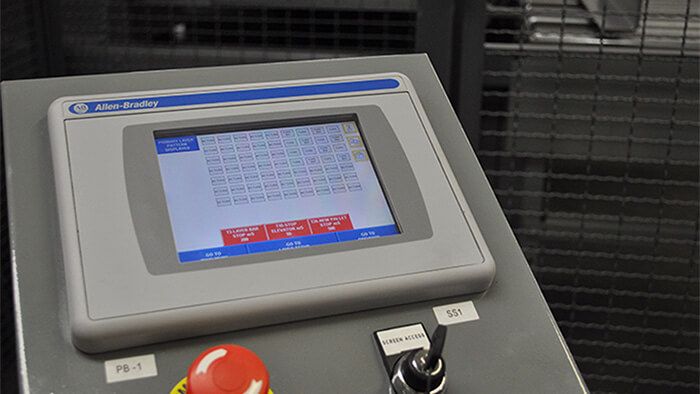

At the touchscreen, operation is one-touch easy. You can control all functions, diagnostics, and changeover settings, and set up daily, shift, or batch runs at the menu-driven interface. Real-time operating data is available at a glance. Preventive maintenance messages automatically flag periodic or routine tasks.
Need to run a new product, add or change a pallet configuration? The integrated pallet builder software makes it easy and intuitive.

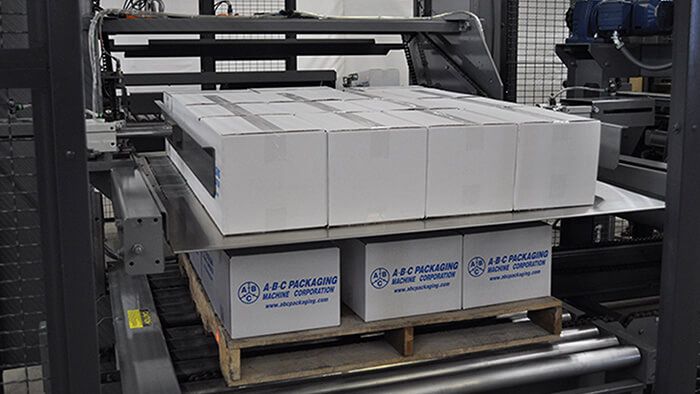

Rugged mechanical load transfer and counterweighted elevator table
Product layers are moved to the pallet by either dual chain-driven transfer mechanisms or powered overhead transfer, depending on the application. These transfer methods provide powerful and consistent load transfer with optimized speed.
Features for seamless layer forming

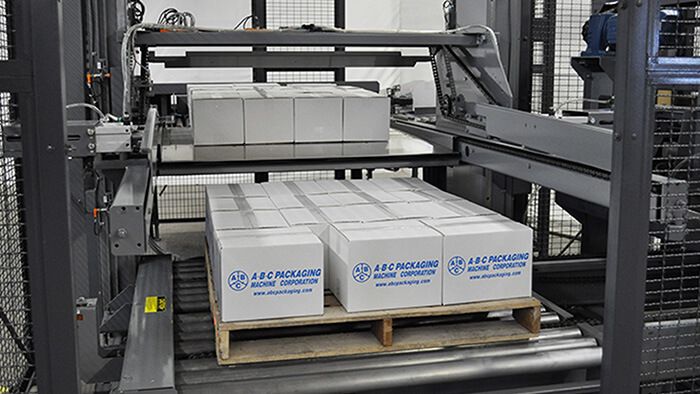

The elevator table is crafted of stainless steel and reinforced to provide smooth load transfer for years to come. The heavy gauge stainless transfer plate is supported by crossbar reinforcing beams, reducing case friction and eliminating table load stress.
The elevator table is counterweighted to provide stable vertical transport with soft start and stop. This design minimizes pull on the drive motor to ensure long operating life.
Accommodates product and layer variations to build perfect palletloads

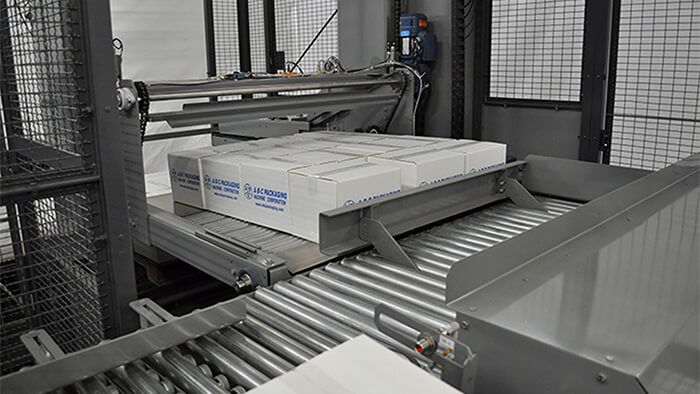

The self-adjusting layer retainer sweep bar on the 72 Series palletizers compensates for case load variations and ensures a positive sweep for every load. It automatically centers each layer on the pallet, eliminating additional adjustments during changeover.
Layers are squared during pallet placement to build strong and secure pallet loads for optimum product protection throughout distribution.
Designed for your palletizing needs today and in the future
While each palletizer is pre-programmed upon delivery to accommodate your current requirements, the integrated pallet builder software makes it easy to add new configurations and patterns at the operator console.
The modular design of the 72 series palletizers allows adaptability for new specifications, and we offer a complete selection of product infeed and pallet discharge alternatives, as well as many orienting and accumulation options for a range of product styles.
Integrations
A-B-C palletizers are built for easy integration into your packaging line. If you're looking for more automation, we've got you covered with our complete line of secondary packaging solutions:
Case Erector
Case Packer
Partition Inserter
Decaser
