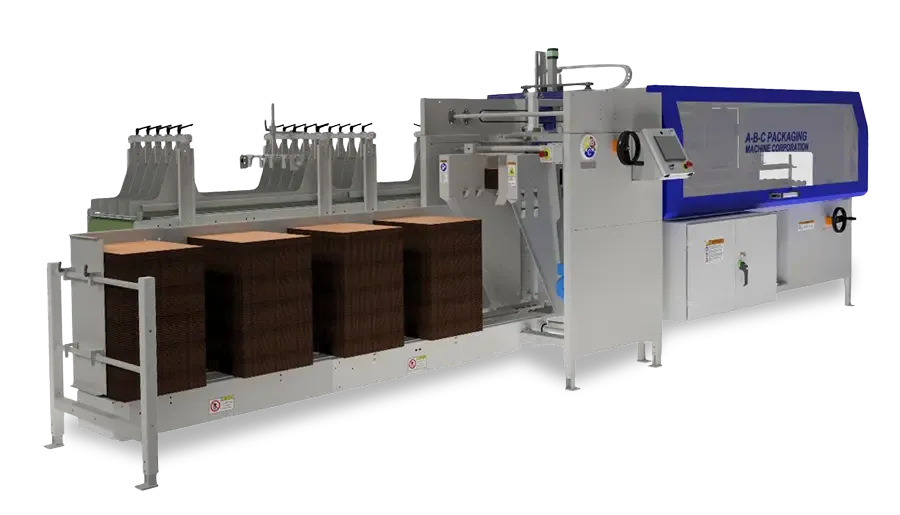

Tray Packer
Model 170
Gentle and precise horizontal wraparound tray packing for multiple product styles. Gain top efficiency, easy flexibility and hands-free operation.
Protecting your product from the packaging line to the end user

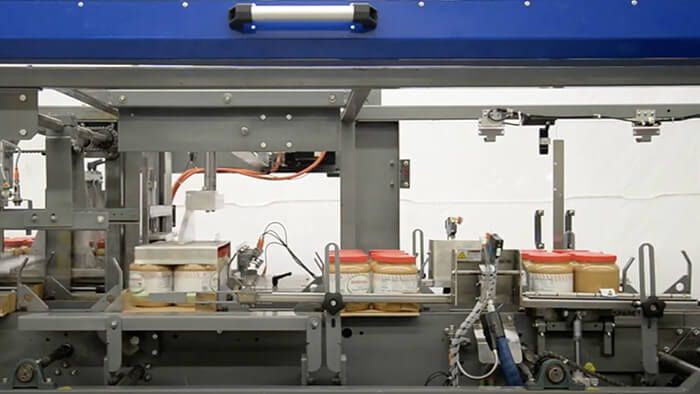

Numerous innovative features ensure gentle loading and smooth product handling. Harmonic motion drive is utilized to transfer the tray from loading to sealing to ensure the stability of each product load.
Steel folding arms securely square and seal each tray around the product load, forming tight-packed trays that form strong and stable pallet loads.
Intelligent machine control simplifies setup, operation and diagnostics
Operation is simple and repeatable for quick operator proficiency. At the touchscreen, you control all functions, diagnostics, and changeover settings following clear, step-by-step sequences. Real-time operating data is available at a glance.
PLC electronics control operation, document performance and take the guesswork out of diagnostics. Non-contact sensors monitor machine functions and ensure precise timing of each operating sequence. Troubleshooting at the control console is straightforward, with simplified drill-down to sensor level for immediate fault detection and quick resolution.
Maximize uptime with quality production features
A tubular steel machine frame provides stability and strength while eliminating catchpoints for dust accumulation, to maintain cleanliness for food plant requirements. All components that contact the product are constructed of stainless steel for sanitary product handling. Maintenance requirements are minimized with sealed bearings, permanently lubricated air cylinders, air inlet regulator, and Venturi vacuum system.
Top feed magazine is forgiving to variations in corrugated

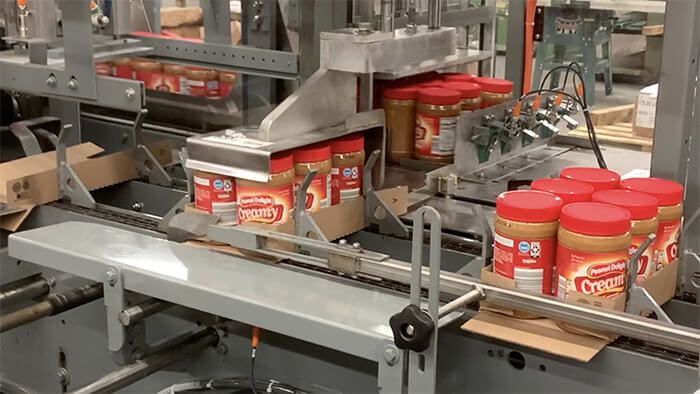

Minimal operator intervention is ensured with the low-level tray magazine that is easy to load and can be refilled at any time during operation. The magazine feeds from the top of the stack, for smooth, interrupted tray supply, and trays are transported by heavy, chain-mounted flight lugs for positive placement throughout loading and sealing.
Easy-open gull wing style guard doors are standard equipment, providing complete machine containment yet ensuring easy access when opened.
Future-proof your tray packing line
This tray packer accumulates and packs rigid and semi-rigid containers, glass and plastic bottles and jars, chipboard and shrink-wrapped cartons, composite and paperboard containers into display, half height and full height corrugated trays. It offers flexibility to adjust to package changes as your needs evolve.
Corrugated dividers may be inserted automatically between product rows for label protection and/or stacking strength if desired.
Integrations
A-B-C packers are built for easy integration into your packaging line. If you're looking for more automation, we've got you covered with our complete line of secondary packaging solutions:
